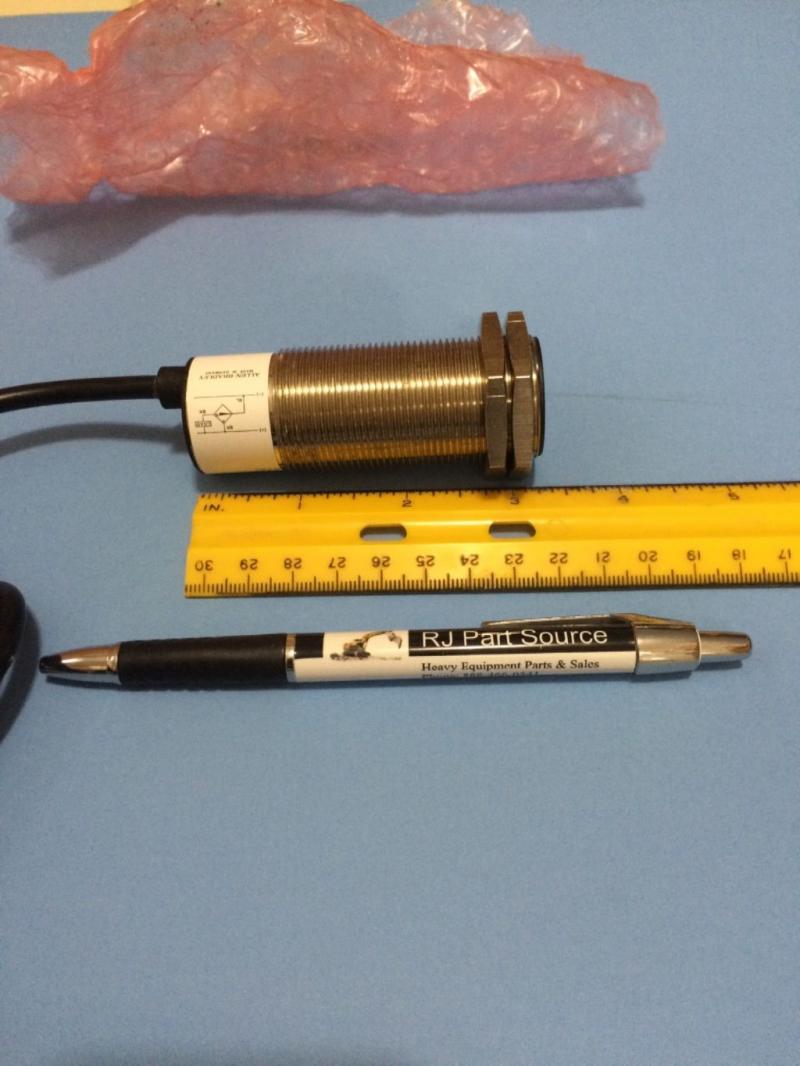

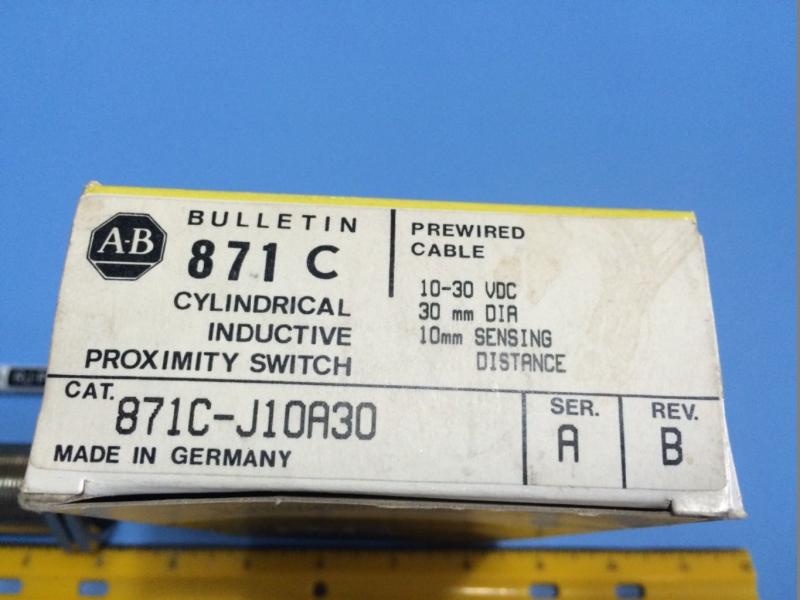

Rated switching distance Sn 10 mm

Mounting conditions flush

Assured switching distance ð (0,81 x Sn) mm

Repeatability ð 2 % of full scale

Temperature drift ð ± 10 %

ð ± 15 %, ð -25 °C v ï +70 °C

Hysteresis 3…15 %

Ambient temperature -30…+85 °C

Operating voltage 10… 30VDC

Residual ripple ð 10 % Uss

DC rated operational current ð 200 mA

No-load current I0 ð 20 mA

Residual current ð 0.1 mA

Rated insulation voltage ð 0.5 kV

Short-circuit protection yes/ cyclic

Voltage drop at Ie ð 1.8 V

Wire breakage / Reverse polarity protection yes/ complete

Output function 3-wire, NO contact, NPN

Protective insulation 2

Switching frequency 2 kHz

Construction threaded barrel, M30 x 1.5

Dimensions 64 mm

Housing material plastic, PA

Material active area plastic, PA

End cap Plastic, EPTR

Max. tightening torque housing nut 5 Nm

Connection cable

Cable quality 5.2 mm, LifYY, PVC, 2m

Cable cross section 3 x 0.34 mm2

Vibration resistance 55 Hz (1 mm)

Shock resistance 30 g (11 ms)

IP Rating IP68

MTTF 874 years acc. to SN 29500 (Ed. 99) 40 °C

Switching state LED yellow
